Version 2 - China Leather Shoe Patcher Sewing Machine Base with Table

Version 2 - China Leather Shoe Patcher Sewing Machine Base with Table

Regular price $165.00 USD
Regular price Sale price $165.00 USD
Sale Sold out
Shipping calculated at checkout.

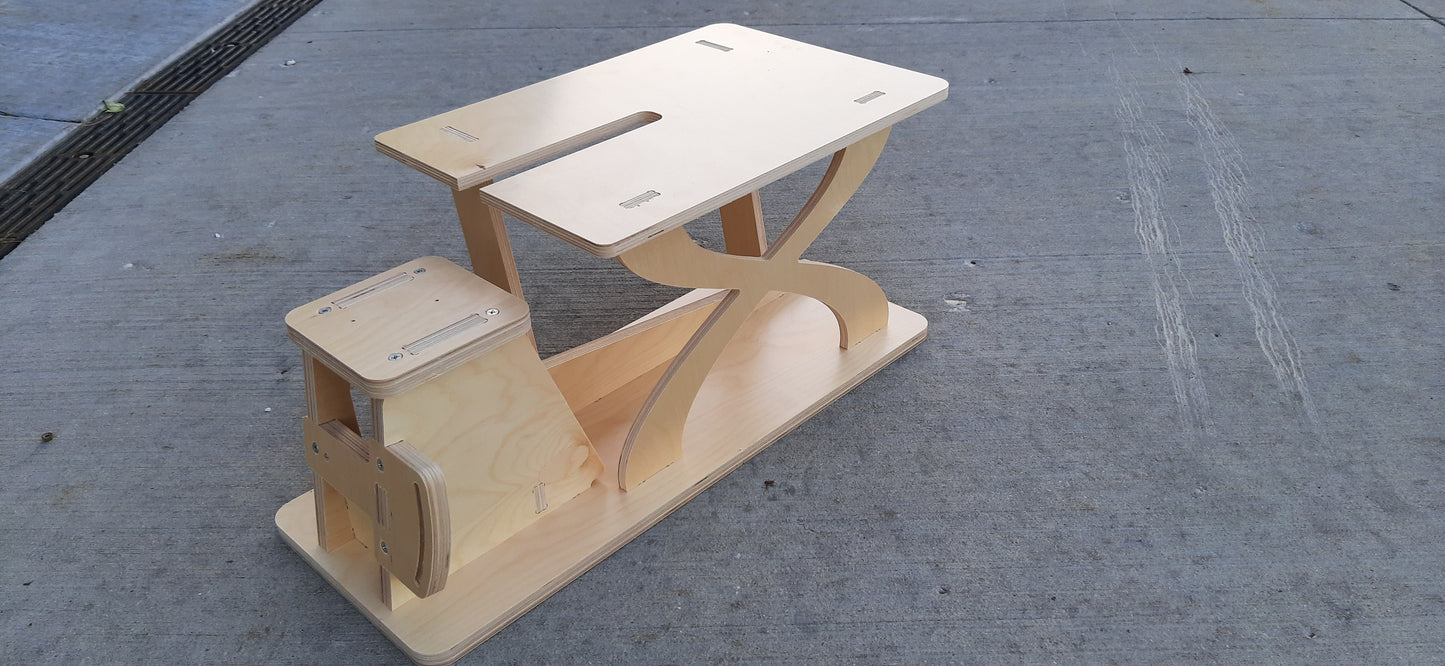

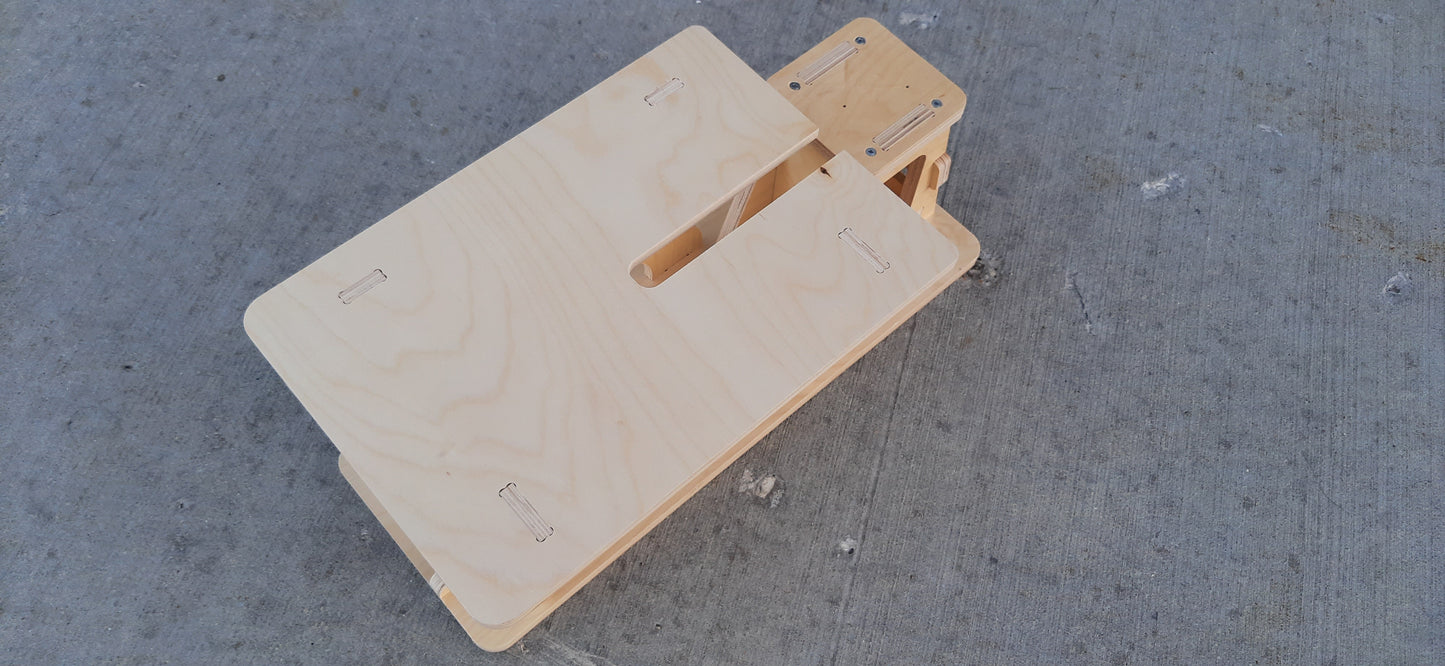

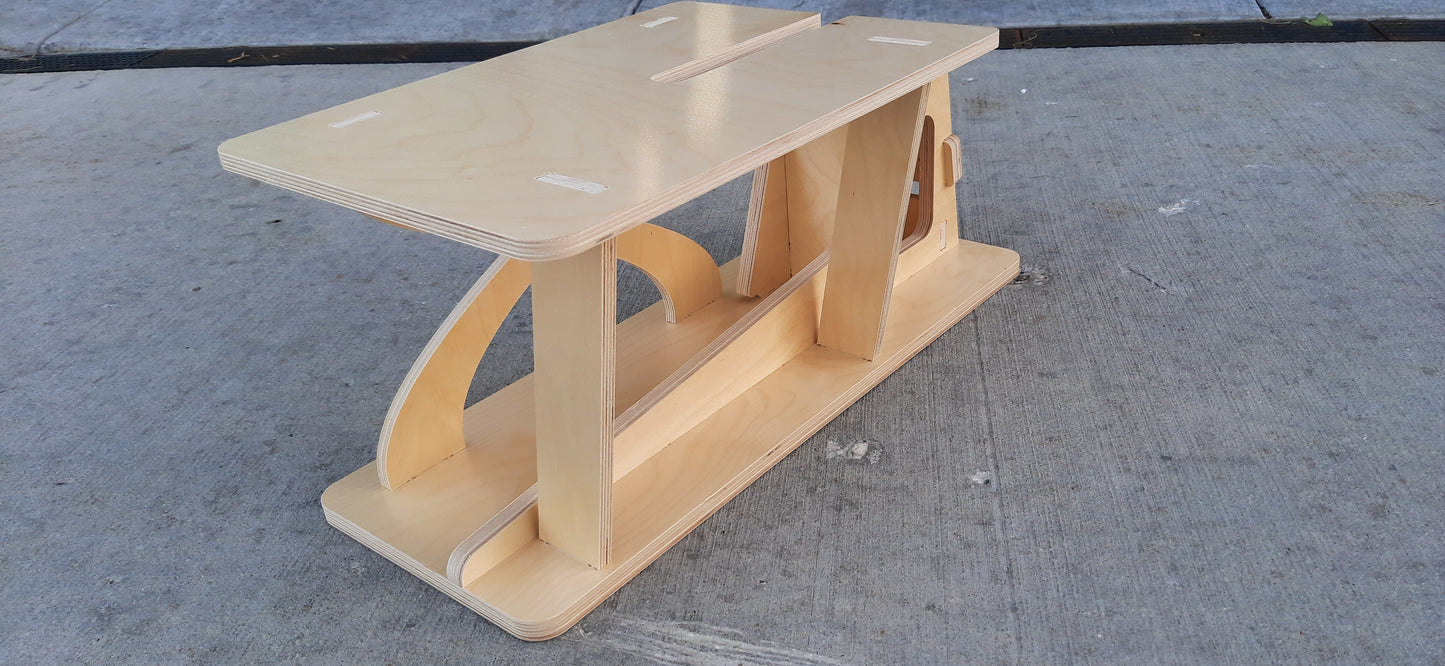

This is the base and stand for the Chinese Leather Shoe Patcher Sewing Machine you find on eBay and Amazon. The original base design was referenced from The Swedish Maker on YouTube. He didn't give any measurements and he took down his plans so I designed the size of the base and table to my own needs.



The base dimensions are 28" wide by 11" deep

The sewing table dimensions are 19-5/16" by 13.50" deep and sits 12-1/8" from the table you place this base onto.

This thing is solid!  The entire base and table is cut out of the highest quality cabinet grade Russian Birch that has been UV coated from the factory. It has a really nice slippery finish to it.


There is a cubby hole in the middle of the base to hold your sewing accessories, accessible from the sides.

Each one of these will be custom made to order so if you prefer to have your machine sit at a certain height please let me know either before you order or after you order. Otherwise I will make the base to my original height.

This base and table will be shipped as a flat pack. You will need to put it together when you receive it. The base fits together like puzzle pieces, with slots and tabs. Screws will be included.

The table itself, slides into slightly loose slots. You DO NOT want to put glue unless you want the table to be permanent. It is meant to be removable.



Our Version 2 features:
-Easily removable table
-Cubby hole front storage access
-Increased front side table area
-Rotated front table supports for increased rigidity
-CS1000 motor mount with swivel ability (CS1000 Servo system sold separately)
(your handcrank sits slightly at an angle)
-Servo driver (not included) mounts to interior storage wall
-Made with prefinished UV Baltic Birch



SHIPPING is $35, it is a heavy base to ship, there's nothing I can do about that.

* CLSP sewing machine NOT INCLUDED

* I asked the Facebook group if all sewing machine frames came from the same manufacture and therefore all have the same dimensions, I never received an answer so I'm assuming yes.

* All sales are final, being a custom made product I cannot offer a refund. HOWEVER I can help you with support on the base and table itself.
